Settings on the M1 and on the knitting machine

    1
    Call up Yarn Field Allocation dialog box.
    2
    Select the yarn field with plating yarn.
    3
    Select the yarn carrier type for the plating yarn Normal and enter it.
  1. The yarn carrier will be marked with the icon.
    2. 4
    Select the yarn carrier type for the basic yarn U+/- and enter it.
  2. The yarn carrier will be marked with the icon.
    3. 5
    For the yarn carrier type U+/- enter the engaging values Ua/Ub.
  1. These values are automatically applied to the knitting program and the setup data.

These settings will be written to the Sintral program.
Example for the yarn carrier 5A with the engaging width “46 mm”:
Y-5A:U 23.0-23.0;
U - engaging values
23.0 on the left-hand side
23.0 on the right-hand side

Toujours indiquer les valeurs de prise car elles ont une influence sur la position d'arrêt du guide-fil. Si nécessaire, vous pouvez plus tard adapter les valeurs de prise aux données sur la machine à tricoter.

Set the engaging width on the knitting machine
(EKC control)

The Ua and Ub values are important for parking the yarn carriers correctly:

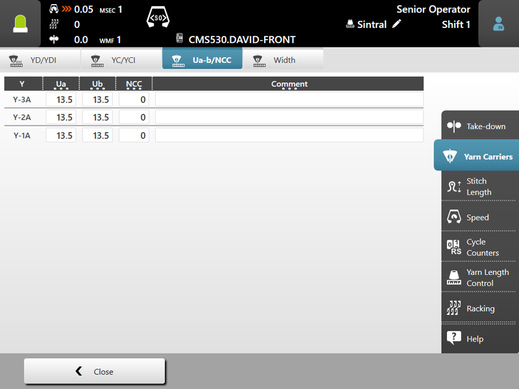

Path: Setup Editor -> Yarn Carriers menu -> Y:Ua-b / Ncc tab

Explanation

Value range

Y

Corrections of yarn carrier 1A to 8D



Ua

Adjusting the engaging width (left) when plating with normal yarn carriers.

Minimum value: 11.5 mm
Maximum value: 23 mm
Step width: 0.5 mm

Ub

Adjusting the engaging width (right) when plating with normal yarn carriers.

NCC

Only for machines with clamping and cutting bed:
Control of the clamping depth of the respective clamping and cutting needle.

Default setting: n=0
e.g.: Sink the clamping and cutting needle by 5 steps deeper: NCC=5

Minimum value: -10
Maximum value: 10
Step width: 1

Régler la profondeur de pince (NCC)

Avec un fil fin ou élastique, il peut être nécessaire de tirer l'aiguille de pince et de coupe de façon plus profonde pour assurer une meilleure sécurité de coupe.

Set the engaging width on the knitting machine
(OKC control)

The Ua and Ub values are important for parking the yarn carriers correctly:

Enter the values for:

Explanation

Value range

Y

Corrections of yarn carrier 1A to 8D



Ua

Adjusting the engaging width (left) when plating with normal yarn carriers.

Minimum value: 11.5 mm
Maximum value: 23 mm
Step width: 0.5 mm

Ub

Adjusting the engaging width (right) when plating with normal yarn carriers.

NCC

Only for machines with clamping and cutting bed:
Control of the clamping depth of the respective clamping and cutting needle.

Default setting: n=0
e.g.: Sink the clamping and cutting needle by 5 steps deeper: NCC=5

Minimum value: -10
Maximum value: 10
Step width: 1

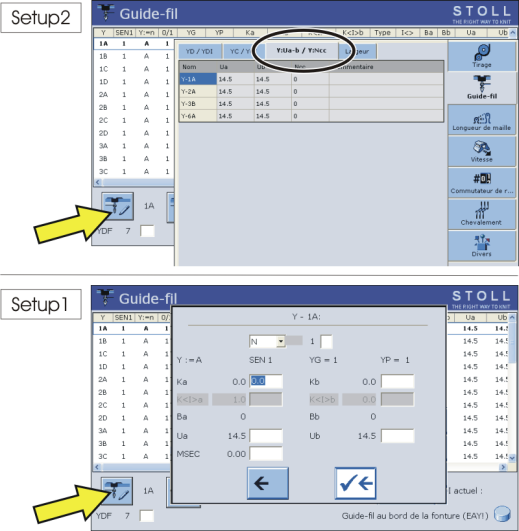

For Setup1: Set the clamping depth in the Machine settings window. For Setup1 this setting affects to all clamping and cutting needles.

Régler la profondeur de pince (NCC)

Avec un fil fin ou élastique, il peut être nécessaire de tirer l'aiguille de pince et de coupe de façon plus profonde pour assurer une meilleure sécurité de coupe.
