Step 2: Loading and Adjusting Shapes in the ShapeWizard

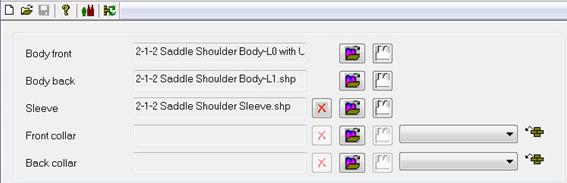

Upload shape parts to the ShapeWizard

Combine the shape parts front, back and sleeve in the ShapeWizard to a k&w file.

    1
    Run the ShapeWizard via the Shape / ShapeWizard (k&w Put Together Shape)... menu.
    2
    Upload the corresponding shape parts using the browser key .
  1. The Open dialog box appears in order to select a shape file.
    3
    Select and upload shape.

For the sleeve the loaded shape can be removed again with the button.
In order to correct loaded shapes call-up the Shape editor with the button.

Settings in the ShapeWizard

    1
    Carry out the settings for the corresponding shapes in the ShapeWizard.
  1. Docking points are calculated.
  2. k&w arrangements are loaded.



Function

Setting

1

Connection

B1 – Type1 (no connection L0-L1)

2

Saddle shoulder with 2:1:2 compensation

To the next step 3: Set docking points
