Step 1: Creating shape

    1
    Open the Shape editor via Shape /Shape Editor (Generate or Edit Shapes)....
    2
    Under General Shape Data select the corresponding k&w ... shape type.
    2. 3
    Set Input format to Stitches.
    4
    Activate mirrored under Elements.
    5

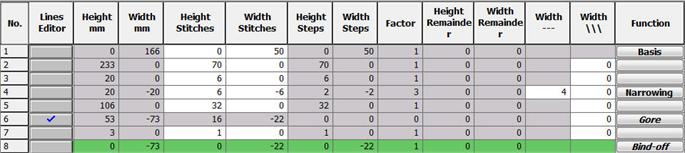

    Establish coordinates and allocate attributes.

Front

    1
    Under Function allocate the desired attribute to the Narrowing edge.
    2
    Allocate the Shoulder gore (line No. 6) under Function in the Gore tab.
    3
    Under Function allocate the French shoulder above V-neck module to the Gore edge.
    4

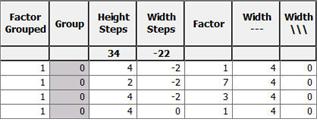

    Set the coordinates for the shoulder gore via the Line editor.
  1. Option Line editor: the gore steps can be repeated via the factor.
    5
    Allocate the end line to the Binding-off tab under Function.
    6
    Select the French shoulder Neck binding-off module.

Shape element Neckline in the front

    7
    Select a new element and under Type select the Gore entry.
    8
    Specify the coordinates for the Neckline via the Line editor.
    2. 9
    Specify the neckline distance until the end line:

Back

    1
    Deactivate mirrored under Elements.
    2

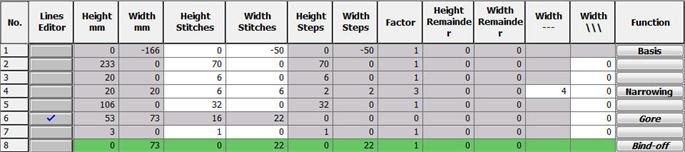

    Set the coordinates for the left and right shape side.

Back on the left

    3
    Under Function allocate the desired attribute to the Narrowing edge.
    4
    Allocate the Shoulder gore (line No. 6) under Function in the Gore tab.
    5
    Under Function allocate the French shoulder above V-neck module to the Gore edge.
    6
    Set the coordinates for the shoulder gore via the Line editor.
    2. 7
    Allocate the end line to the Binding-off tab under Function.
    8
    Select the French shoulder Neck binding-off module.

Back on the right

    9
    Under Function allocate the desired attribute to the Narrowing edge.
    10
    Allocate the Shoulder gore (line No. 6) under Function in the Gore tab.
    11
    Under Function allocate the French shoulder above V-neck module to the Gore edge.
    12
    Set the coordinates for the shoulder gore via the Line editor.
    2. 13
    Allocate the end line to the Binding-off tab under Function.
    14
    Select the French shoulder Neck binding-off module.

Sleeve

    1

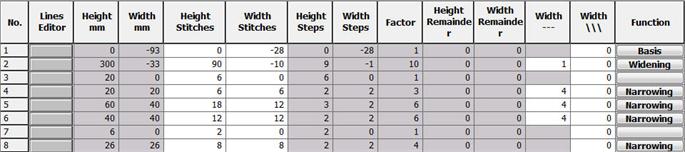

    Allocate the desired attributes Widening and Narrowing to the edges under Function.
    2
    In line No. 5 and No. 6 allocate the Sleeve above Layers apart module to the Narrowing edge.
    3
    Coordinates for Remaining narrowing of the French shoulder (line No.8)
    4
    Under Function allocate the French shoulder module in the Narrowing tab.
    5
    Narrow the remaining narrowing in the entire width.
    2. 6
    The remaining narrowing must be marked as non-knitting area.
    7
    In the Connections (Line No. 8) tab select the options.

To the next step 2: Loading and adjusting shapes in the ShapeWizard
