Generate pattern with shape

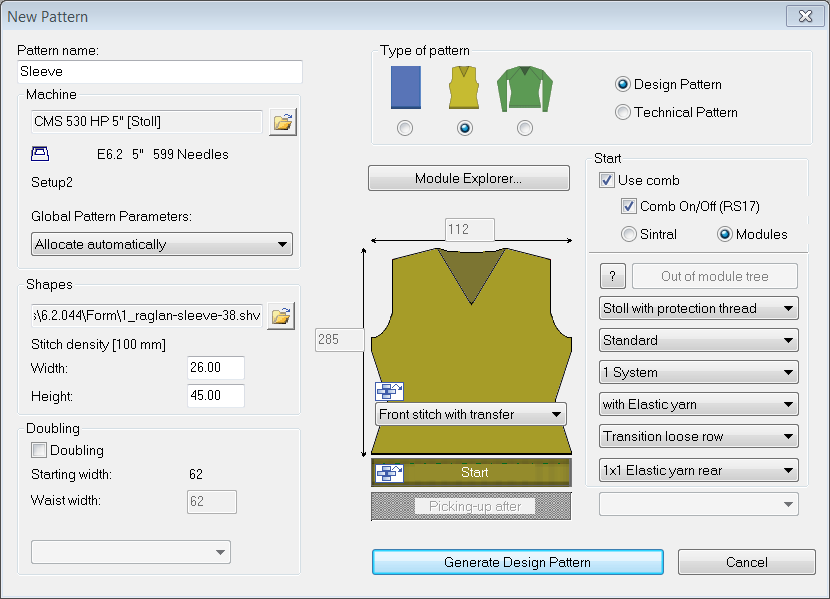

Create new pattern with shape:

    1
    Select File / New from the menu bar.
    - or -
    Click the icon.



Setting

Meaning

Design Pattern

Pattern programming with the new functions of theM1plus

Technical Pattern

Pattern programming similar to M1

    2
    Enter a Pattern name.
    3
    Select the machine type and the desired setup type.
    4
    Select Basic pattern (pattern with shape) and Design Pattern.
    5

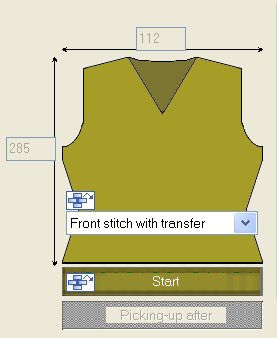

    Select shape and specify stitch density.
  1. The pattern size will be automatically entered based on the selected shape.
    6
    Set the structure for the basic pattern via the selection list.
    7
    Select a start.

A start can also be inserted after drawing the basic pattern.

    8
    Confirm the settings with Generate Design Pattern.
  1. A symbol view [Basic] with positioned shape will be opened.
