Jacquard Module of your own

I. Generate a new Jacquard module:

1: Call up the Jacquard Module Definition editor via the Module / New / Jacquard Module... menu.

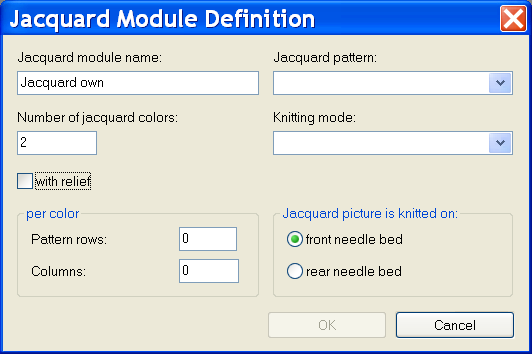

2: Define the specifications:

Number of jacquard colors
Pattern rows per color
Columns per color
Picture side of jacquard

Element		Meaning
Jacquard module name		Enter a own name for the Jacquard module.
Jacquard template		Select an existing Jacquard which can be used as template.
Number of jacquard colors		Number of colors within the pattern row. For every color a block is inserted.
Knitting Mode		Select a knitting mode for the module properties.
with relief		Input possibility for jacquard relief. An additional block is shown in which the process for relief can be drawn in.
per color		Edit Box
	Pattern rows	Number of pattern rows per color
	Columns	Number of columns per color in the block.
Jacquard picture is knitted on		Optional Features
	front needle bed	The jacquard picture is knit on the front needle bed.
	rear needle bed	The jacquard picture is knit on the rear needle bed.

3: Draw the knitting sequence with Needle actions.
- or -
Select a Jacquard template, set the number of Jacquard colors and confirm with OK.

A template appears which you can change as desired.

You can use all needle actions.
For rows with transfers, a racking specification can also be made.

	Meaning
1	Pattern row 1
2	Pattern row 2
3	Color 1
4	Color 2
5	Color 3
6	Color 4

4: Close the Module Editor with .

5: Set up Binding under Knitting mode in the Technique tab of the Properties of: dialog box.

The module is saved in the Module Explorer of Database under New Modules.

The module can be used with Fully Fashion pattern.

6: Specify the Start and End modules in the JAC net type tab of the Properties of: dialog box.

They will be used with inserting the new module.

Column	Meaning
Knitting mode:	Specify the knitting mode(s) before (during) the jacquard start.
Start modules	This module is used for the net start. Transition from pattern to the jacquard area.
End modules	This module is used for the net end. Transition from jacquard area to the pattern.

The knitting mode of the jacquard area controls the setting of the End module.
The knitting mode before (below) the jacquard area controls the setting of the Start module.

7: Save the module in the Module Explorer of Database under Jacquard / Own / noname X-color.

You can select the Jacquard module of your own in the Jacquards dialog box.

II. Allocate recognition picture:

recognition picture of the Jacquard is displayed in Properties of:.
You can replace the recognition picture in order to recognize the modules of your own easily.
Only pictures in the Bitmap format (bmp) and of the size 128x128 pixel can be used.

1: Specify the path to a recognition picture via Properties of / Jacquard picture.

III. Apply own jacquard module:

1: Select the Jacquard area in the motif via the row selection bar.

2: Call up the Jacquards dialog box via the Edit / Generate or Edit Jacquard... menu.

3: Select the generated Jacquard module via Jacquard properties in the Jacquard / Own / nonameX module group.

4: Insert the jacquard generator by Apply into the motif.
