Working with the Fabric Take-down Table

I. Call up the fabric take-down table and change the entry:

  1. Carry out changes in the Basic Pattern state of pattern.
    1
    Place the cursor on the control column for the fabric take-down in the Symbol View and press the right mouse button.
  1. The context menu for fabric take down with the fabric take-down values in use and the favorites appears.
    2
    Place the cursor on the changed entry and press the right mouse button.
    3
    Click Edit entry in the context menu.
    - or -
    Click Additional Values... in the Fabric Take-down context menu.
  1. The Fabric take-down table appears.

You can call up the Fabric take-down table via Pattern Parameters / Fabric take-down… as well.

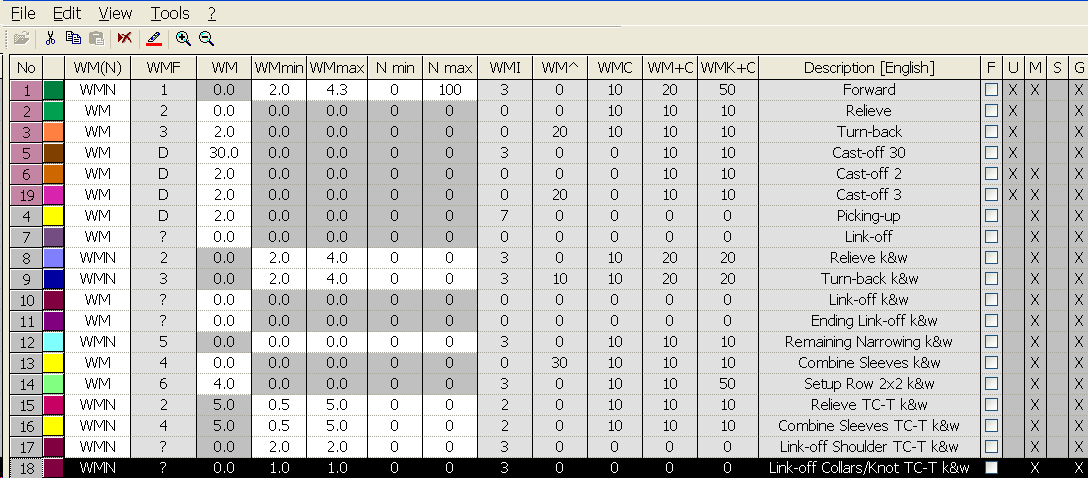

Designations in the fabric take-down table

Column

Display

No.

Consecutive numbering of the entries

Color

Color of entry

WM(N)

WM

Fabric take-down value when this is not changed in accordance with the number of needles.

WMN

Fabric take-down value when this is changed in accordance with the number of needles (fabric width).

WMF

Index for indirect allocation of the fabric take-down value
(Fabric take-down menu)

WM

Fabric take-down value when this is not changed in accordance with the number of needles.

WM min

Fabric take-down value for minimum fabric width

WM max

Fabric take-down value for maximum fabric width

N min

Number of needles for minimum fabric width

N max

Number of needles for maximum fabric width

WMI

Fabric take-down impulse value

WM^

Specification of a number of degrees for the reverse rotation of the take-down

WMC

Value for the sensitivity of the stop motion control of the main take-down

WM+C

Specification of the system number for the fabric take-down control

WMK+C

Specification of the system number for comb monitoring

Description

Comments referring the entry

Status columns

Display the status of the entry

II. Specify favorites in the fabric take-down table:

    1
    Open the Fabric take-down table.
    2
    Activate the desired entry in the status column F .
  1. The selected entry is displayed in the selection menu.

The status Modified can be canceled in the context menu of the Fabric take-down table with Reset modified status.
