What was new in CREATE PLUS V2.4

More Placeholder Colors for Color Arrangements

Placeholder Colors for Color Arrangements in the Icônes pour les éléments de tricotage tool window extended to 32.

• CA Placeholder Colors

Standard Colors of M1plus in the Couleurs Dialog Box

48 standard colors of the M1plus are available for direct selection

• Change Color Value

Configuration

If the value differs between project and pattern, than this state will get marked by the little button next to the entry.

• The button will appear empty if the value between project and pattern is the same but not inherited from the project due to manual editing.

• Filtering by Pattern

FlexPly Knitting Technique Available

FlexPly is similar to Devoré, simultaneously practicable on both needle beds by one system.

• FlexPly Knitting Technique
• Only ADF machines, EKC type, E 7.2
• System Conversion of both opposing knitting systems is required.

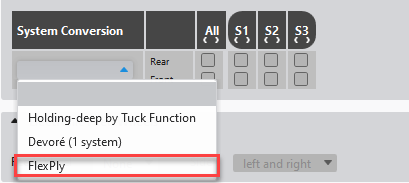

• Specify the desired system in the Configuration dialog box -> Attributs de machine tab -> Fonctions système section.

  System Functions
• The following function appears with FlexPly selected:

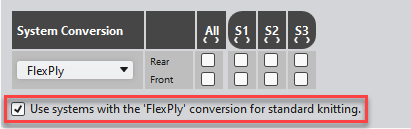

  Utiliser une chute avec modification "FlexPly" pour un tricotage normal.
  Systems with FlexPly conversion are not recommended for stitch forming and disabled by default.
  Activate this function if you want to use the converted system for ordinary stitch forming.

• Converted systems do not support other needle actions as transfer, tuck or split.
• The FlexPly avant et arrière setting is required in the Fonction système control column.
  System Function

Systems converted for FlexPly cannot drive yarn carriers into clamping position.

Separated Modules for Knitting-in, Knitting-out and the Corresponding Bindings

You can assign the modules for Knitting-in / Knots and Knitting-out / Knots independently from each other in columns of the Paramètres de couleurs table.
You can combine the different variants as you wish.

• Intarsia / Knitting-in group of Paramètres de couleurs
• Module pour le tricotage en entrée

• Nœud / entrelacement, tricotage en entrée

• Intarsia / Knitting-out group

• Module pour la fin du tricotage
• Nœud / entrelacement, fin de tricotage
• Separated directories of the Knit Explorer for Knitting-in, Knitting-out and Knots


Due to it, pattern project of version 2.4 cannot be saved for a former version.

Check box for Optimized System Sequence

New function the tool window Couleurs multi-système:

O (Séquence du système optimisé) column to specify the system sequence in the pattern.

•
  Séquence du système optimisé
• System Sequence for Minimized Time of Production
• The sequence of the used yarn carriers may change.
•
  Séquence du système régulier
• System sequence with a common order of the yarn carriers

Extract knitting programs with Multiple Processing

You can extract already created knitting programs by the Extraire... function of the Élaboration multiple ribbon group.

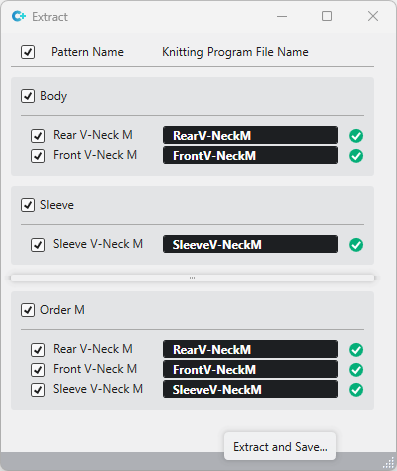

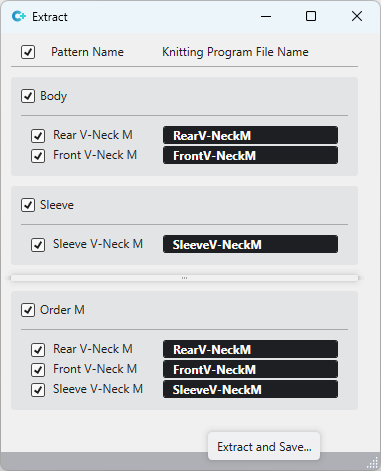

The Extraire... dialog box appears.

• Select in it the desired knitting programs.

• A green checkmark appears next to each successfully extracted knitting program.


Alternative Call-ups of Contrôle du Sintral

You can open the Contrôle du Sintral as follows:

• For knitting programs of the current pattern project
• Accueil ribbon -> Sintral (Ribbon Group) ribbon group -> Sintral Check
• The icon is greyed out and disabled if the no knitting program is available for the pattern.
• For knitting programs regardless of the current pattern project
  Recommended for external knitting programs!

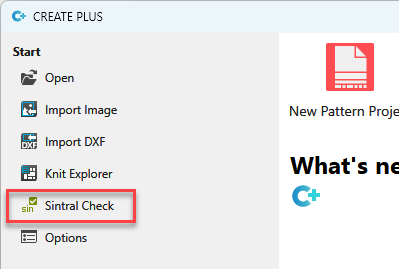

• Call up the Sintral Check directly on the Start Page.

• - or -

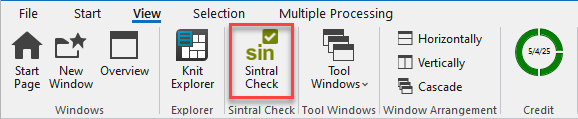

  Call up the Sintral Check by View ribbon.

• Load and check any desired knitting program without loading the pattern.
• You can load and check a knitting program of the pattern only if it is already extracted.

Manage settings of the Status Bar of the Lined Shape

You can manage the view settings of lined shapes via the context menu of the status bar.

Following options are available:

• Context menu of the pattern layer

Rolling Picking by the F5 Key

You can pick-up needle actions or modules from the pattern to the cursor in the needle area with the F5 key.
Set the cursor on the desired position and press the F5 key.

Several needle actions can be inserted at one cursor position as stitch, devoré and do not sink e.g.
Therefore, rolling picking is now also possible with the F5 key.

All needle actions together are picked up by the first picking.
By newly, repeated picking, the needle actions will appear one after the other.

1. F5

2. F5

3. F5

4. F5


• Pick Attributes

Draw in pattern elements with shape symbols from pending shape.

• Problem:
  A pattern element with shape symbols (from pattern with pending shape) cannot be inserted in a pattern.
• Remedy:
  You can insert the pattern element any way into the pattern by disabling the shape symbols in the cursor attributes.

1. Create pattern element from selection.
2. Click the shape symbol in the cursor attributes and switch it off thereby.
3. Insert a pattern element into the pattern.

You can assign the following module types to a shape marking of the lined shape.

• Structure Modules
• Pattern Elements
• Shape Marking Modules
  Fully Fashion / Marquage de forme

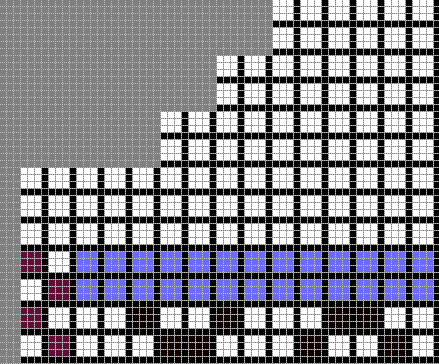

Shape markings appear as follows in the raster-shape created from the lined shape:

Variant 1:

• The shape marking consists of a shape marking module.
• The shape marking does not appear in the Marquages de forme tool window.
• Therefore, the module of the shape marking cannot be replaced.

Variant 2:

• The shape marking consists of a structure module or of a pattern element.
• The shape marking appears in the Marquages de forme tool window.
• Therefore, the module of the shape marking can be changed.

Drag-and-drop Knitting Elements and Yarns

You can copy back and forth knitting elements and yarns of different positions of use and storage by drag-and-drop.

• The following folders enable drag-and-drop:
• Knit Explorer
  Knit Explorer
• Accès rapide
  Quick Access
• Tool window of the individual knitting elements
  Module tool window
  CA tool window
  MA tool window
  Pattern elements tool window
  Yarns Tool Window
• Windows File Explorer
• You can drag-and-drop even between different projects.
• You can drag and drop a knitting element or yarn to any desired tool window for knitting elements.
  The knitting element or yarn will be copied to the corresponding tool window or to the corresponding path of the Modules tool window.
• In each dialog box with selection of a knitting element, you can drag and drop it from any desired folder to the selection field.
• To all table cells with selection of a knitting element or yarn, you can drag and drop it from any desired folder.
  In the Zones de tricotage tool window or Paramètres de couleurs table e.g

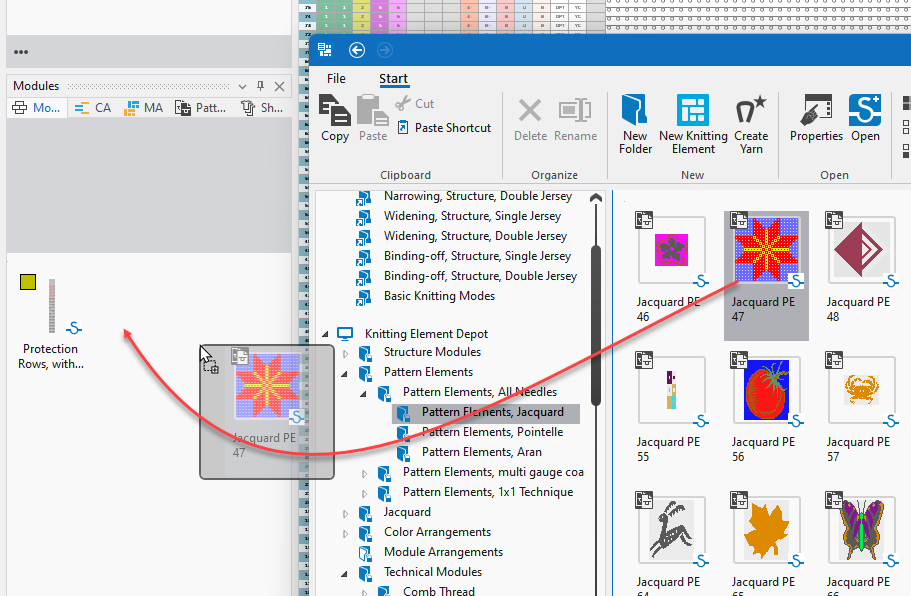

Example 1:

• Drag and drop a pattern element from Knit Explorer to the Modules tool window.
• The pattern element appears in the Parties de dessin tool window.


Example 2:

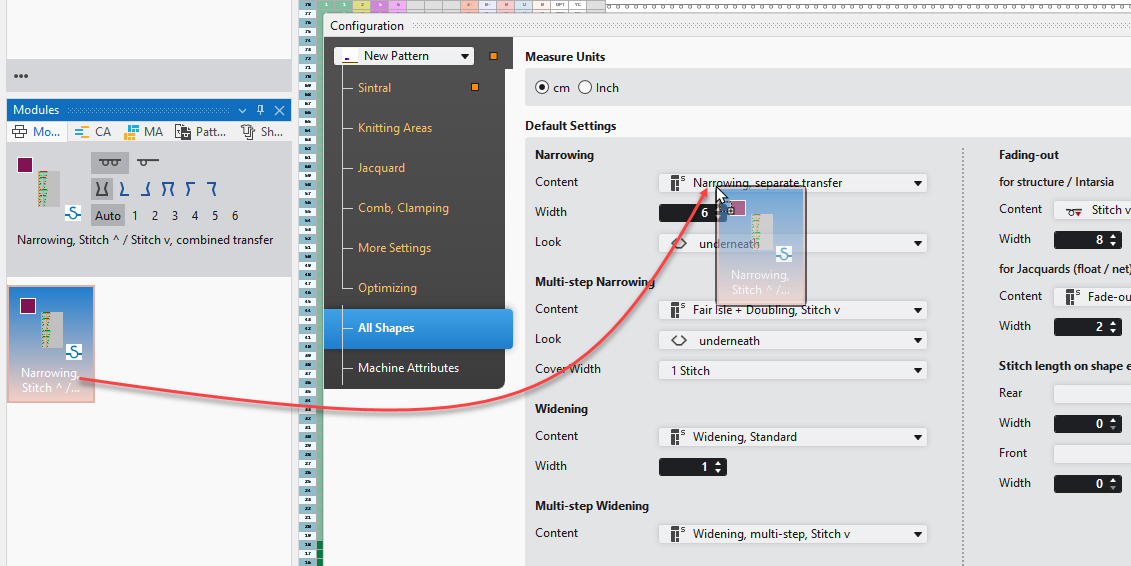

• Drag and drop a narrowing module from the Modules tool window to the Configuration dialog box -> Toutes les coupes tab -> Valeurs prédéfinies par défaut section:


Sort Pattern-related Rows

You can add pattern related rows into tables of the Pattern Parameters .
The pattern-related rows may become very confusing if the project contains many patterns.

Therefore, you can sort the pattern-related rows now in different way.

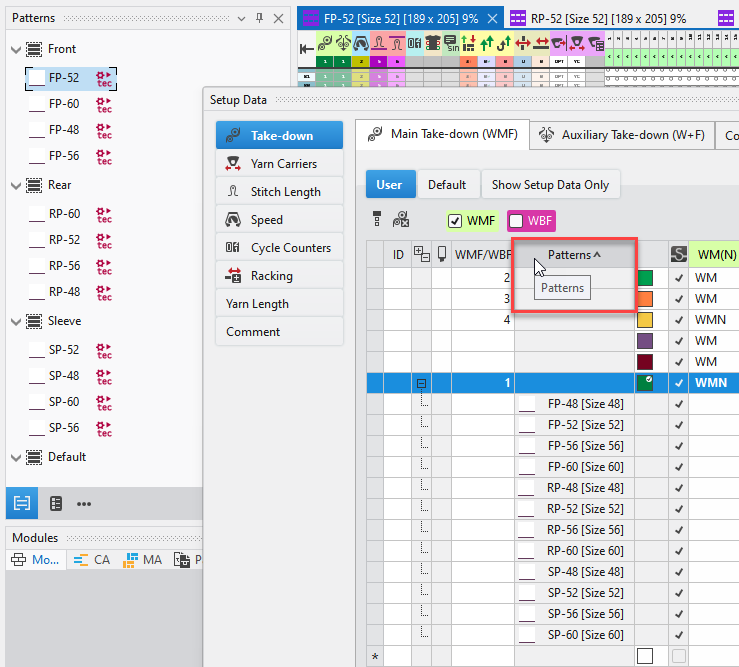

• Sort alphabetically (as known):
• Click the column header to the Dessin column.
  The entries are sorted alphabetically according to the pattern names:

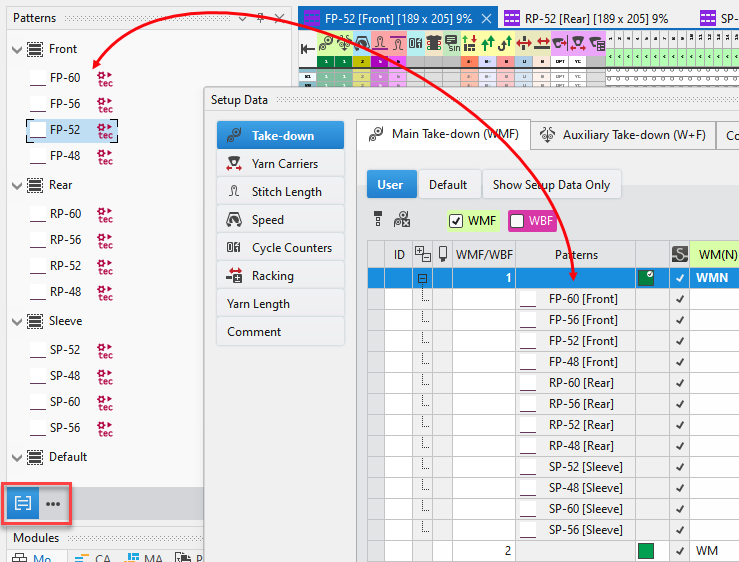

• Sort by orders:
• If the rows are alphabetically sorted, click Réinitialiser le classement in the context menu of the table header.
• Activate travailler avec des ordres in the Dessin tool window.
• The entries will be sorted according to the Dessin tool window.

• Re-sorting the patterns in the Dessin tool window will immediately update the sorting within the table.

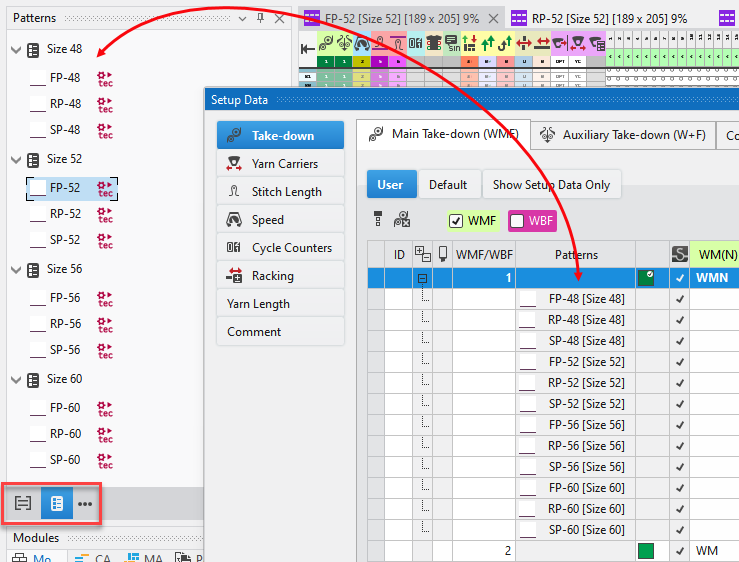

• Sort by groups:
• If the rows are alphabetically sorted, click Réinitialiser le classement in the context menu of the table header.
• Activate travailler avec des groupes in the Dessin tool window and deactivate travailler avec des ordres.
• The entries will be sorted according to the Dessin tool window.

• Re-sorting the patterns in the Dessin tool window will immediately update the sorting within the table.
• Sorting of rows with pattern-related values

Combining Technical Yarns in the Guide-fil Tool Window

Example:
Drag and drop yarn carrier 2R Fil élastique 1 to yarn carrier 2L Fil du peigne 1.

Important for machines with a reduced quantity of yarn carriers (e.g. CMS 502)

• Combined technical yarns get a new symbol:


Separate Combined Technical Yarns:

1. Right click on symbol of the yarn carrier.
2. Click on Couleurs techniques.
   The combined yarn carriers appear:
3. Drag the desired yarn carrier from the context menu to any desired position.

• Yarn Carrier Allocation
