r-curve

How to define a r-curve in the raglan shape type, in the armhole narrowing at the body:

    • The dimensioned shape is opened in the Dimensioning View FormularShapeView.
    • The startpoint and endpoint of the Narrowing of Armhole are dimensioned horizontally and vertically.
      ScreenHunter_264 Apr. 07 21.32
  1. Open the context menu for the left diagonal shape line of the armhole narrowing in the back.
    ScreenHunter_265 Apr. 07 21.34
  2. Select the ShapeLinePropertiesLine Properties.
    • The Line Properties tool window appears.
  3. Activate CheckBoxOnShow Line Preview.
    • The selected shape line and the mirrored shape line appear in the line preview on the right.

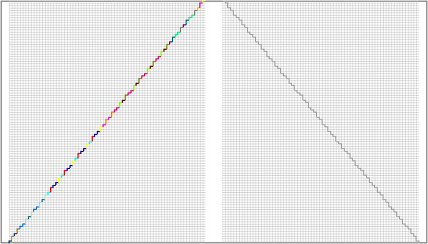

      rCurve_DetailView_Ini
  4. Keep the Standard option in the BehaviorList Box White list box.
  5. Keep the CheckBoxOffFill Neckline check box deactivated.
  6. Go to the Stepping Parameters group box.
  7. Select the List Box Whiter-curve option in the Stepping KindLittleRCurveLineAttrib list box.
    • The detail view updates.
      rCurve_LineTypeSelected
  8. Keep the value 0 in the Min. Step HeightTextBox+Spin_1 edit box.
  9. Select the value 2 in the Step WidthTextBox+Spin_1 edit box
  10. Keep the undefined option in the Stepping in the HeightList Box White list box.
  11. Select the value 2 in the Min. Height at the End of LineTextBox+Spin_1 edit box.
    • The detail view updates.
      rCurve_MinHeightAtEndSelected
  12. Activate the CheckBoxOnBinding-off at Line Foot check box.
    • The Percentage of the Line WidthTextBox+Spin_10 edit box appears enabled.
  13. Select the value 10 in the Percentage of the Line WidthTextBox+Spin_10 edit box.
    • The detail view updates.
      rCurve_BindingOffSelected
    • The Binding-off entry appears in the Function column of the line S. 1.
    • The steppings in the narrowing of armhole form an r-curve.
      rCurve_Result
    • Module, width and look of the narrowing from the default settings are assigned in the sub-rows with the Narrowing function.
