Preset Stepping

How to determine the steppings in the armhole narrowing at the body via preference points:

• The dimensioned shape is opened in the Dimensioning View .
• The startpoint and endpoint of the armhole narrowing are dimensioned horizontally and vertically.

1. Open the context menu for the left diagonal shape line of the narrowing of armhole in the front.

2. Select the Line Properties.
• The Line Properties tool window appears.
3. Activate Show Line Preview.

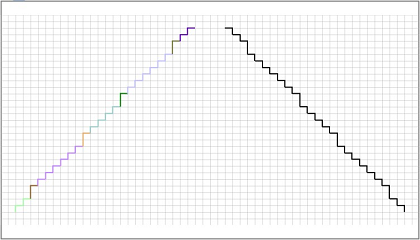

• The selected shape line and the mirrored shape line appear in the line preview on the right.

4. Go to the Stepping Parameters group box.
5. Select the Preset Stepping option in the Stepping Kind list box.
• The detail view updates. The line curve is displayed as a black line.

6. Activate the Binding-off at Line Foot check box.
• The Line Width by Stitches edit box appears enabled.
7. Select the value 5 in the Line Width by Stitches edit box.
8. The detail view updates.

9. Open the context menu in the background of the detail view.

10. Click Add Preference Point.
• The preference point is displayed as a green point.

• The line preview is updated. The polyline goes through the preference point.
  The steppings fit the new polyline the best possible way.

11. Drag the preference point to the desired position with the left mouse button pressed.
    Add as many preference points as necessary.
• Module, width and look of the narrowing from the default settings are assigned in the sub-rows with the Narrowing function.
  How to change the narrowing settings
• The steppings in the narrowing of armhole approach the preference point.
