Basic Page Layout (dialog box)

In this dialog box you can make the following settings in order to create your own template of a page layout.

You call up the Basic Page Layout dialog box by the BasicPageLayoutBasic Page Layout... button of the Options dialog box.

Printer

OpenPrinterList_PrintingDialog
Open the picklist and select the desired printer.
The current state of the selected printer will be displayed.

Settings

  • Paper Format
    PrintPaperFormat
    Open the picklist and select the desired attribute.

  • Orientation
    Open the picklist and select the desired attribute.

    • Landscape PrintLandscape

    • Portrait PrintPortrait

  • FileSaveSave
    Saves the page layout as it is shown in the preview.

  • ExportPageLayoutExport
    Saves the page layout as it is shown in the preview under different name or path.

  • ImportPageLayoutImport
    Imports a saved page layout.

  • Placeholder
    Picklist of placeholder for information about the order.
    PlaceholderList_TooltipSize
    You can position placeholders in the preview by the Insert Placeholder context menu.
    GraspersPlaceholderBasicPageLayout_Overview
    F1-Help_Philosophy_small Tab Information

Preview of the Page Layout

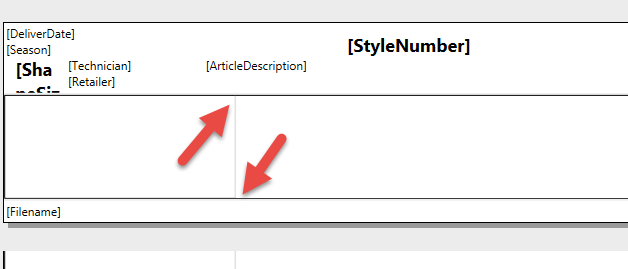

PreviewBasicPageLayout_HeaderFooter

The preview shows the positioned placeholders and the separator bars of header and footer (red arrows).

  • Insert Placeholder

    • Insert placeholders at the mouse position in the preview.

    • GraspersPlaceholderBasicPageLayout_Overview

  • Insert Placeholder with its Title

    • Insert placeholders with its title at the mouse position in the preview.

    • Example
      Placeholder: GraspersPlaceholderTitleBasicPageLayout_Overview
      Printed hard copy: Season: Spring

Info You can enter the @ character directly into a placeholder in order to print the title of the placeholder.

  • Insert Text
    TextToPrint_TextBox_NewText
    Insert a text box at the cursor position and type the text.
    You can rotate or delete the text box with the context menu of the graspers.
    TextToPrint_TextBox_GrasperMenu_RotateRemove

  • Insert Picture 1 and Insert Picture 2
    Inset left and right image of the Information tab.
    You can rotate or delete the text box with the context menu of the image.
    Example: QR code and image of the item
    F1-Help_Philosophy_smallInformation

  • Insert Table

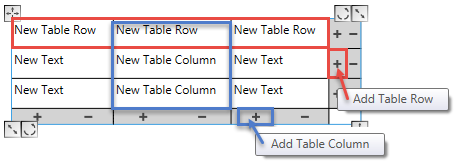

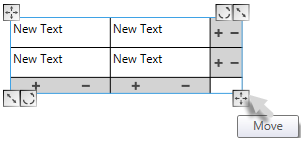

    TableToPrint_4cells_NewText
    TableToPrint_AddCells_New Column and Row

  • Insert Arrow
    ArrowToPrint_ContextMenu_PrintPreview
    Insert an arrow and drag it with the mouse into the desired direction.

  • Restore Stoll Page Layout
    Info The Stoll Page Layout is only available for PrintLandscapeA4Landscape.

View Options

  • ZoomPlus
    Zoom in the preview

  • ZoomMinus
    Zoom out the Preview

  • ZoomBestToFit
    Best fit to the Preview

  • ShowFitToPrintWidth Fit to Width
    Full Width as Preview

  • ShowFitToPrintPage Whole Page
    Full Page as Preview

  • ShowTwoPrintPages Two Pages
    Two Pages as Preview

Formate Placeholders

How to Formate Texts to Print out:

FormatingTools_PlaceholderSeason_PageLayout

  1. Select the name of the placeholder including its brackets.
    Example: [Season]
    • The mini toolbar with the formatting tools appears.
  2. Click the desired formatting items.
  3. Move the cursor away from the mini toolbar and the placeholder box.
  • The new text styles are applied to the text.
    Accordingly formatted text appears in the print preview.
    Example: Bold, italic and centered

Info Incompletely selected placeholders will not be replaced by text within the print preview.

Position Placeholders

How to Position the Placeholders with these Graspers:

  • PrintGrasperMove Move
    Click the grasper and move the placeholder with the mouse button pressed.

  • PrintGrasperRotate Rotate
    Click the grasper and rotate the placeholder around its center point with the mouse button pressed.

  • PrintGrasperWiden Change Width
    Click the grasper and drag the placeholder wide or narrow with the mouse button pressed.
    The text will break if necessary.

  • PrintGrasperScale Scale
    Click the grasper and draw the placeholder great or small with the mouse button pressed.

    • Moving the mouse to the center point makes the placeholder smaller and reduces the font size

    • Moving the mouse to the center point enlarges the placeholder and the font
