r-curve

How to define a r-curve in the raglan shape type, in the armhole narrowing at the body:

    • The dimensioned shape is opened in the Dimensioning View FormularShapeView.
    • The startpoint and endpoint of the Narrowing of Armhole are dimensioned horizontally and vertically.
      ScreenHunter_264 Apr. 07 21.32
  1. Open the context menu for the left diagonal shape line of the armhole narrowing at the rear.
    ScreenHunter_265 Apr. 07 21.34
  2. Select the ShapeLinePropertiesLine Properties.
    • The Line Properties tool window appears.

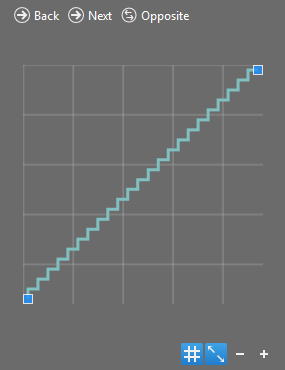

  3. Activate CheckBoxOnShow Line View.
    • The selected shape line appears in the line view.
      StraitLine_LineView
  4. Go to the Stepping Parameters group box.
  5. Select the List Box Whiter-curve option in the Stepping KindLittleRCurveLineAttrib list box.
    • The line view updates.
      rCurve_LineTypeSelected
  6. Keep the value 0 in the Min. Step HeightTextBox+Spin_1 edit box.
  7. Select the value 2 in the Step WidthTextBox+Spin_1 edit box
  8. Keep the undefined option in the Stepping in the HeightList Box White list box.
  9. Select the value 2 in the Min. Height at the End of LineTextBox+Spin_1 edit box.
    • The line view updates.
      rCurve_MinHeightAtEndSelected
  10. Activate the CheckBoxOnBinding-off at Line Foot check box.
    • The Line Width by StitchesTextBox+Spin_10 edit box appears enabled.
  11. Select the value 6 in the Line Width by StitchesTextBox+Spin_10 edit box.
    • The line view updates.
      rCurve_BindingOffSelected
    • The Binding-off entry appears in the Function column of the line S. 1.
    • The steppings in the narrowing of armhole form an r-curve.
      rCurve_Result
    • Module, width and look of the narrowing from the default settings are assigned in the sub-rows with the Narrowing function.
