Preset Stepping

How to choose a variant:

  • The Line Properties are opened with preset stepping over several rows.
  1. Click the Propose Stepping... button next the Stepping Kind picklist.
  2. The Proposed Steppings dialog box appears.
  3. Click on the desired variant.
  4. Apply the selection with OK.
    • The values are applied to the Line Properties.
      The dialog box is closed.
      Example:
      ShapeLineProposalSteppingView
  5. If desired:

  • Adjust the values of the sub rows of the line table.

  • Move the preference points.

How to determine the steppings in the armhole narrowing at the body via preference points:

  • The dimensioned shape is opened in the Dimensioning View FormularShapeView.
  • The startpoint and endpoint of the armhole narrowing are dimensioned horizontally and vertically.
    JCurve_ShapePointsWithDimensionings
  1. Open the context menu for the left diagonal shape line of the narrowing of armhole at the front.
    GradingShapeViewContextDiagonalLine
  2. Select the ShapeLinePropertiesLine Properties.
    • The Line Properties tool window appears.
  3. Activate the ShapeLineDetailViewLine View.
    • The selected shape line appears in the line view.

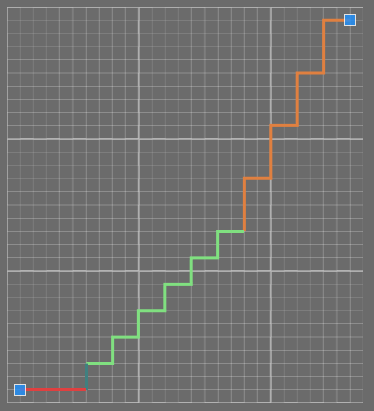

      PresetStepping_DetailViewIni
  4. Go to the Stepping Parameters group box.
  5. Select the List Box WhitePreset Stepping option in the Stepping KindPresetStepping list box.
    • The line view updates. The line curve is displayed as a dotted line.

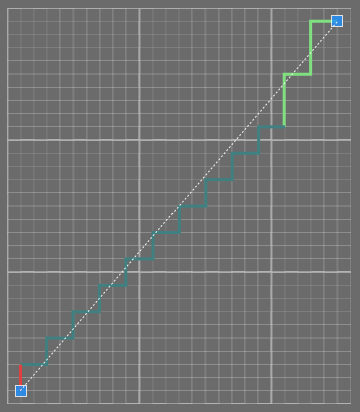

      PresetStepping_DetailView_DotLine
  6. Activate the CheckBoxOnBinding-off at Line Foot check box.
    • The Line Width by StitchesTextBox+Spin_1 edit box appears enabled.
  7. Select the value 5 in the Line Width by StitchesTextBox+Spin_1 edit box.
  8. The line view updates.

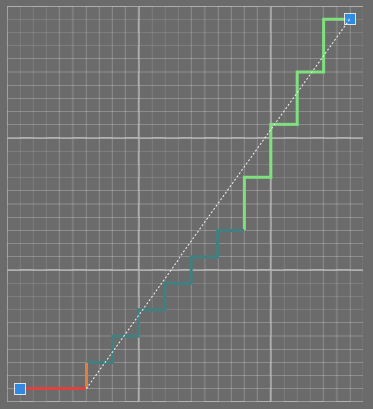

    PresetStepping_BindOff
  9. Open the context menu in the background of the Line View.
    PresetStepping_ContextMenu
  10. Click Add Preference Point.
    • The preference point is displayed as a rectangular point.
      PresetStepping_GreenCircle
    • The line view updates. The polyline goes through the preference point.
      The steppings fit the new polyline the best possible way.

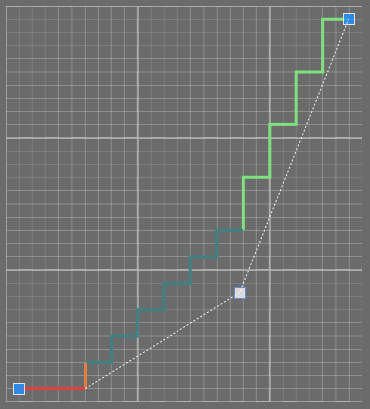

      PresetStepping_WithPoint
  11. Drag the preference point to the desired position with the left mouse button pressed.
    Info Add as many preference points as necessary.
  • Module, width and look of the narrowing from the default settings are assigned in the sub-rows with the Narrowing function.
    HowTo_Philosophy_SmallHow to change the narrowing settings
  • The steppings in the narrowing of armhole approach the preference point.
    PresetStepping_result
