Presser Foot (ADF-W, CMS-W)

Only W-Maschinen

The data of this column has the column header .

The following functions are contained in the context menu of the column for W- machines:

Function

Target

Weft yarn presser foot ON

Use weft yarn presser foot and specify its type.
Here: Type 2

Use weft yarn presser foot and specify its type.

  • W- = Undetermined type and system side
  • W3A = Type 3A, undetermined system side
  • W3A^ = Type 3A, rear system side
  • W3B = Type 3B, undetermined system side
  • W3Bv = Type 3B, front system side

Knitting-in presser foot ON

Use the knitting-in presser foot only when knitting and specify its type.
Only ADF!

Weft yarn and knitting-in presser foot ON

Use the presser foot for weft yarn and knitting-in.
Specify the presser foot type above.
Only ADF!

Presser foot Off

Delete entry from control column.
The presser feet may be used anyway due to other settings.

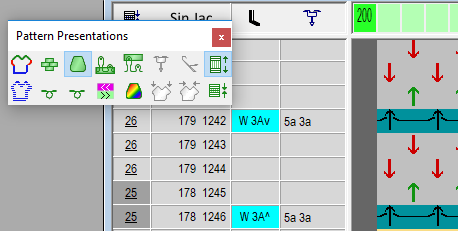

Example with different carriage direction:


In the Sintral

179 >> S:<1-> ES:0/0/V,0; ....

178 << S:<1-> ES:0/^,0/0; ....
