What was new in 7.2?

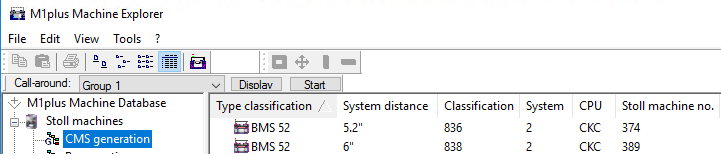

Machine Generation BMS

• Two Types

• BMS 52 kiType 836
• BMS 52 kiType 838
• Special features
• The intarsia yarn carrier types are not supported.
• Attention:
  Yarn carriers that are not used in the pattern must not be parked in the Clamp Home Position and not be clamped as well.

  Check invisible yarn fields (identifier S) and knit-in the corresponding yarn carrier if necessary.
• Sintral command MCWS to extend the carriage path
  The first (n) and last (m) needle position of the following carriage stroke will be written for each stroke into the Sintral in order to prepare the needle selection.
• MCWS= n-m
• The MCWS command will not be written if no relevant stroke follows.
• If the system S1 is available for preparing.
• Sintral Pocket CardMovimento del carro

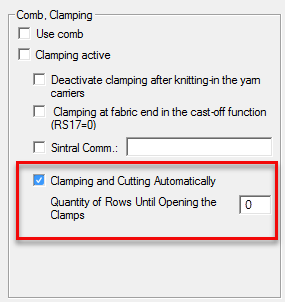

• Configuration / Comb / Clamping

• Default setting for the unit of collecting clamps
• You can control the clamping and cutting of the threads by the following settings manually.
• Mind the dependencies!
• Registro pettine, pinzatura
• Collecting Clamp control column

  With it, you specify:
• The row with clamping
• The side with clamping
• The inner or outer clamp (1/2)
• The threads commonly clamped
• The threads commonly released
• The threads commonly cut
• Clamp Home Position in the Parking Position control column

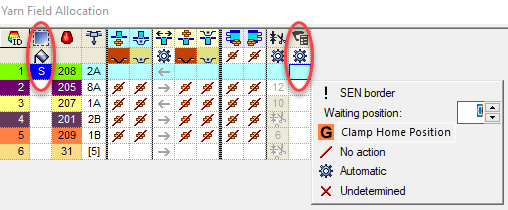

• Clamp Home Position in the Parking Position column of the Yarn Field Table

• Parking the yarn carriers after passing the unit of collecting clamps.
• Thread can be clamped in this yarn carrier position.
• Clamped thread can be cut in this yarn carrier position.
  Attention:
  With it, all threads, even not clamped threads, will be cut in this yarn carrier position.
• Pinzatura/taglio of the GYarn Field Table

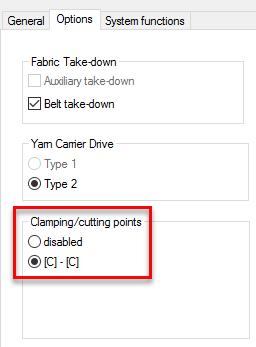

• MC Attributes / Machine Properties

• Inactive
  Do not clamp and cut the threads.
• [C]-[C]
  Use the units of collecting clamps on the left and right side.

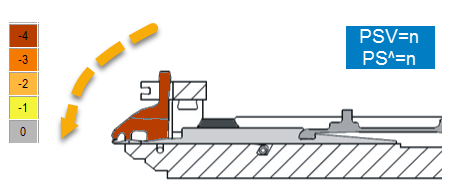

• Holding-Down Jacks control column

• Allocate a value for the position of the holding-down jacks.
  The higher the value, the further the jacks are pulled back (opened).

• Abbattaggio anteriore, abbattaggio posteriore

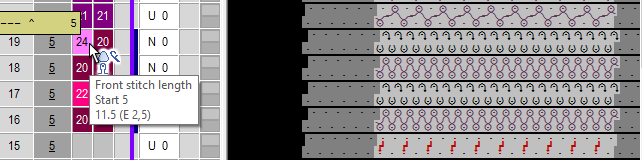

Entry "E" for an extra row in the stitch length table

PTS controls the behavior with stitch length change within a row
There are two new entries for different stitch lengths in the PTS column of the Stitch Length Table:

• Keine Eingabe = No PTS
  The different stitch length will be ignored.
  Only with machines without PTS / NPJ
• E = Extra Row
  Areas with this different stitch length will be shifted to an additional, separate row.

PTS

SEN Edge and Waiting Position column renamed by Parking Position

• SENEdge and Waiting Position
• Parking Position

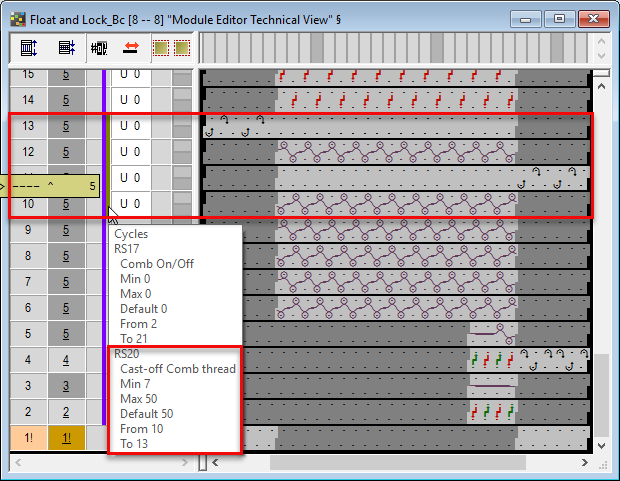

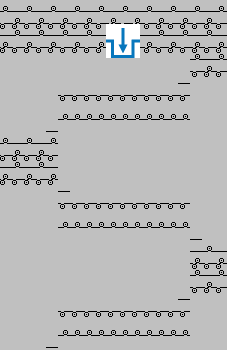

Float and Lock modules for Bc

• Optimized Float and Lock modules in order not to knit into the belt take-down by RS20.

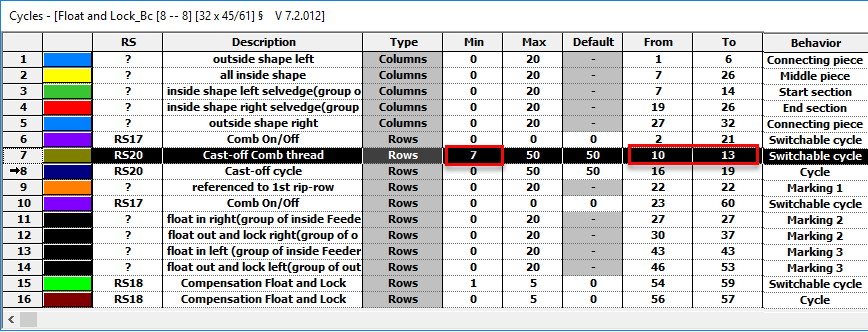

• Cast-off rows before RS20 within a switchable cycle
• Execute rows 10 - 13 only if RS20 ≥ 7 (Min = 7)
• Do not execute rows 10 - 13 if RS20 < 7 (Min = 7)
  Comb thread will only be casted-off after the cycle.

• 2 new stitch lengths for the casting-off cycle in order to set the stitch length more flexible:
• Cast-off cycle Bc front
• Cast-off cycle Bc rear
• Technique / Knitting-in all yarn carriers before the start (1 piece) /
  Float and Lock_Bc [8 -- 8]

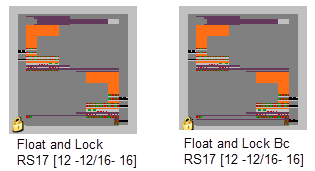

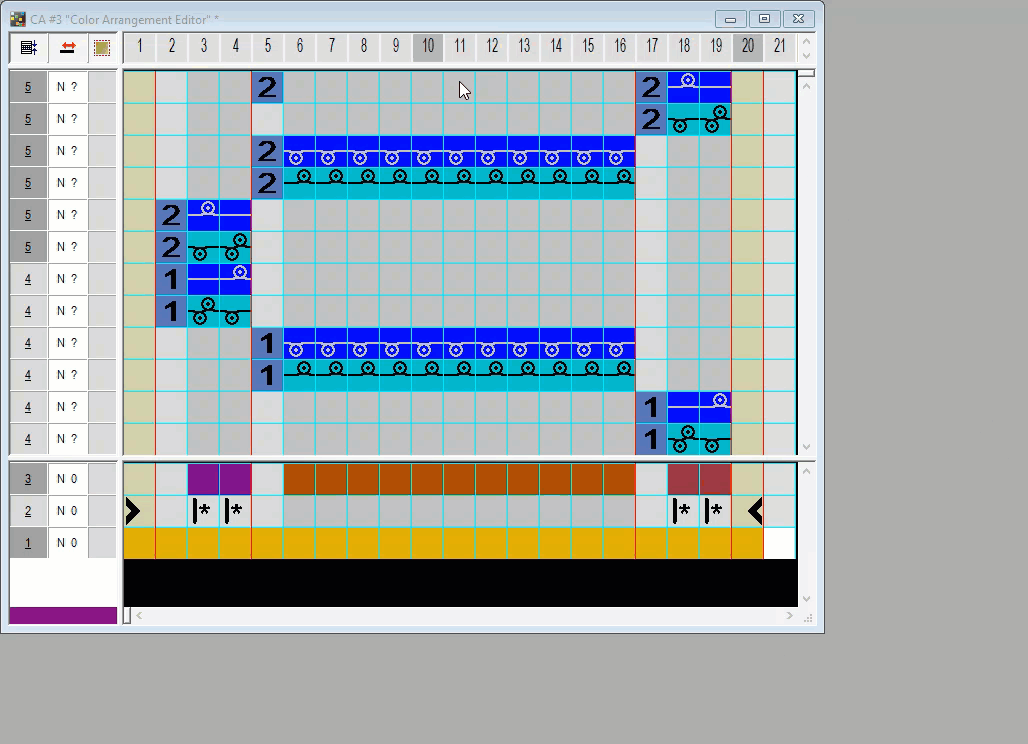

Float and Lock modules for fabric piece transitions by RS17

• Additional Float and Lock modules
• by RS17
• for optimal parking positions (YDopt)
• for W machines with using the presser feet
• Technique / Knitting-in all yarn carriers before the start (1 piece) /
  Float and Lock_Bc [8 -- 8]
• Float and Lock RS17 [12 -- 12/16 -- 16]
• Float and Lock_BC RS17 [12 -- 12/16 -- 16]
•

Protection Thread Module for Bc Machines

• Automatically by Global Pattern Parameters
  e.g. globalparameters_812_bc.mdv
• Time for Machine Stop extended to 5 sec
• Input possibilities for #69 extended to 8
•

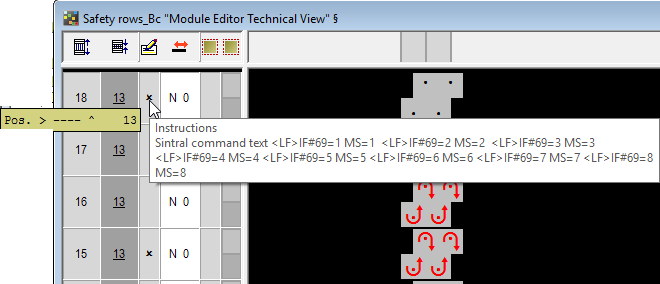

• Sintral Command in PRINT:
  <LF>IF#69=1 MS=1 <LF>IF#69=2 MS=2 <LF>IF#69=3 MS=3 <LF>IF#69=4 MS=4 <LF>IF#69=5 MS=5 <LF>IF#69=6 MS=6 <LF>IF#69=7 MS=7 <LF>IF#69=8 MS=8
• #69=n carriage stops for n seconds.
• Technique / Special fabric pieces / Protection rows (without comb) / Protection rows_Bc

4 Modules with Y-CR0:

Float and Lock without clamping and cutting

• Float and Lock Y-CR0_Bc [8 – 8]
• Float and Lock Y-CR0_Bc [12 – 12/16 – 16]
• Float and Lock Y-CR0_Bc [0 – 8]
• Float and Lock Y-CR0_Bc [0 – 12/0 - 16]
• In the module group
  Technique / Knitting-in all yarn carriers before the start (1 piece)

ADF 330 ki BcW

The gauge E10.2 is supported:

• ADF 830-24 ki W
  Classification822
• CMS 830 ki
  Classification828

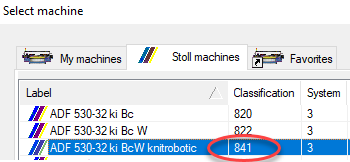

ADF 530-32 ki BcW knitrobotic is supported:

ADF 530-32 ki BcW knitrobotic

Classification 841

E7.2 KW

Basic Knit & Wear Collection from STOLL

• Selection of k&w sweaters with different types of shoulder
• Stamping-out k&w manually
• High flexibility for programming k&w
• Fast and simple editing of k&w patterns
• Clear structure of the knitting program with direct access to the knitting technique
• https://patternshop.stoll.com/shop/pattern/?p=2&o=1&n=12&f=377
