Step 1: Creating shape

    1
    Open the Shape editor via Shape /Shape Editor (Generate or Edit Shapes)....
    2
    Under General Shape Data select the corresponding k&w ... shape type.
    2. 3
    Set Input format to Stitches.
    4
    Activate mirrored under Elements.
    5

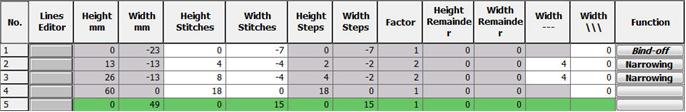

    Establish coordinates and allocate attributes.

Front

    1
    Under Function allocate the desired attribute to the Narrowing edge.
    2
    Execute the Shoulder narrowing (Line No. 6) in the sleeve.
    3
    Under Function in the Narrowing tab set the option.
    2. 4
    Allocate the end line to the Binding-off tab under Function.
    5
    Select the binding-off module Neckline open L0 end on the right.

Shape element Neckline in the front

    6
    Create a new element and under Type select the Neckline entry.
    7
    Set the coordinates for the Neckline.
    2. 8
    Under Function allocate the V-neck start L0/L1 module to the Binding-off edge.
    9
    Specify the neckline distance until the end line:

Back

    1
    Under Function allocate the desired attribute to the Narrowing edge.
    2
    Execute the Shoulder narrowing (Line No. 6) in the sleeve.
    3
    Under Function in the Narrowing tab set the option.
    2. 4
    Allocate the end line to the Binding-off tab under Function.
    5
    Select the binding-off module Neckline open L0 end on the right.

Sleeve

    1

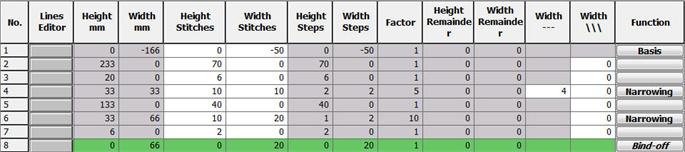

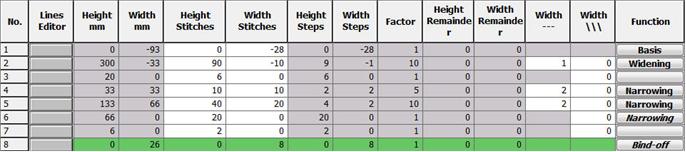

    Allocate the desired attributes Widening and Narrowing to the edges under Function.
    2
    Allocate the Saddle (line No. 6) under Function in the Narrowing tab.
    3
    The saddle is narrowed in the entire width.
    4
    Under Function in the Narrowing tab set the option.
    2. 5
    Allocate the end line to the Binding-off tab under Function.
    6
    Select the binding-off module Neckline open L0 end on the right.

To the next step 2: Loading and adjusting shapes in the ShapeWizard
