Options of the Dimensioning View

In the status bar of the dimensioning view FormularShapeView you will find the following display options:

  • MainAndSubDimensionShapeView
    Show Dimensions
    Shows the main and sub-dimensions of the current size within the shape.
    GradingShapeCollarWidthAll

  • MainDimensionShapeView
    Show Main Dimensionings Only
    Shows the main dimensions of the current size within the shape only.
    You can determine any desired dimensioning as main dimensioning.

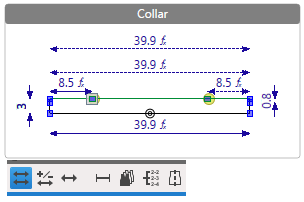

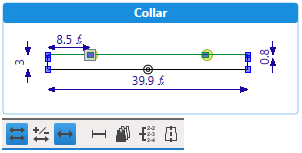

    GradingShapeViewCollarMainDimensionOnly
    This option acts only in combination with MainAndSubDimensionShapeViewShow Dimensionings.

  • CorrectionDimensionShapeView
    Show Corrections
    Shows the correction values of the current size within the shape.
    Here a correction by 5 additional stitches:
    GradingShapeViewArrow+Correction

  • ControlDimensionShapeView
    Show Control Dimensions
    Shows the control dimensions by stitches.
    GradingShapeViewControlDimensionStitch

  • SizeShapeView
    Show All Sizes
    Shows all sizes of the current shape.

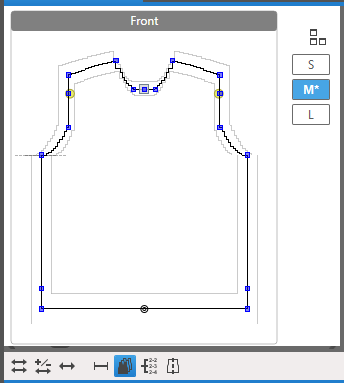

    GradingShapeView_AllSizesFront
    HowTo_Philosophy_SmallHow to Set the Reference Line for the View of All Sizes

  • SpecialShapeView
    Show Knitting Specifications
    Shows the knitting specifications of the current shape.
    The specifications for stepping, start and a summary will be generated automatically.
    Here the specifications for the stepping in the armhole:
    GradingViewSteppingSpecs
    HowTo_Philosophy_SmallHow to Read the Stepping Specifications

  • ShowSymmetryAxis
    Show Symmetry Axis
    Shows the symmetry axis through the point of origine and the endpoint.
    Symmetrical points are mirrored at this axis.

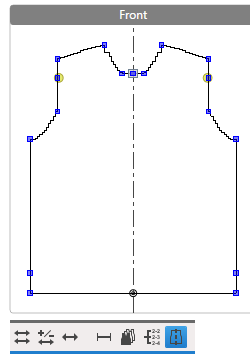

    GradingShapeView_SymmetryAxis_Front

  • KnittingRangeType
    Show Knitting Ranges
    Shows the placed knitting ranges of the current shape.

  • YarnColor
    Show Yarn Colors
    Shows the identification colors instead of of the allocated yarn colors.

  • PatternRaster
    Show Raster Points
    Shows the stitches (raster points) corresponding to the stitch density of the current shape.

  • ImageMode
    Show Images
    Shows the added bitmap image files.
