How to Set the Reference Line for the View of All Sizes

Set the reference line for all sizes of the back at the armhole startpoint:

    • The dimensioned shape is opened in the Dimensioning View FormularShapeView.
    • The ShapeSizeView status icon is activated.
  1. Open the context menu for the desired shape point in the currently bold shape line of the back.
    AllSizes_ReferenceLine
  2. Select Set Y Position to Show All Sizes.

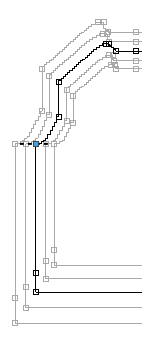

    • All the sizes of the back align according to the selected shape point in the dimensioning view.
      DimensioningView_AllSizes_ShapePointAligned
    Proceed the same way to adapt the alignment of the other fabric pieces.
