What was new in 6.3?

This M1plus software version: 6.3

• M1plus V6.3 can not be installed toWindows XP
• Windows Vista or higher required
• Installation will be cancelled
• Pattern for machines with belt take-down can not be loaded to machines with OKC 5!
• M1plus V6.2 is compatible with machine operating system OKC 5
• M1plus V6.3 is compatible with machine operating system OKC 6

Improvements with CA

• You can copy the whole segment easily if a complete color segment is selected within the CA.
• Selection pasts the copy of a color segment
• Quantity defines the number of segments to be pasted
• From column defines the position and direction of pasting

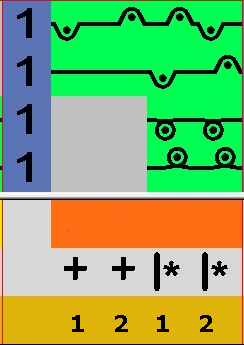

• Excess width and alternative excess width
• A specific knitting area can be used in the excess width depending on the knitting situation of the last column of the repeating area .
• The columns in the repeating area and the excess widths are marked with the numbers.
• The different columns are marked by the numbers of the reference row numbers in row for shape part colors.

• You can define several alternative excess widths

12 clamping positions on CMS 502HP+

• Quantity of clamping positions: 12
• Distance of clamping positions: 2/3 inch
• Only one yarn carrier can be clamped on the outer tracks
• 2 yarn carriers can be clamped on the inner tracks
• Blocked YC positions will be shown in the Rail Allocation dialog box and influences the calculation:


Holding-deep by tuck function

• Need to modify the cam box
• Control column System functions

  System Function
• System functions tab

• Modified knitting system not usable for tuck!
• Sintral command for knitting with holding-deep:
• S:A-#G;  Y:3;        S2
  stitch in front (A) and rear tuck (G) = holding-deep
• S:#G-A;  Y:3;        S2
  tuck in front (G) = holding-deep and rear stitch (A)

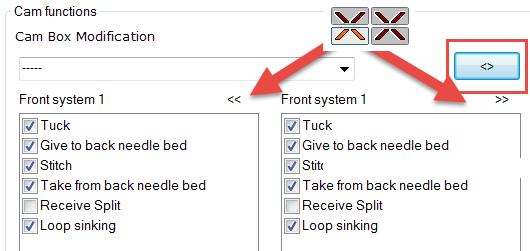

• You can configure system functions according to the carriage direction.


Yarn Carrier Type T (ADF)

• Setting high and low of the yarn carrier YPI
• More plating indices (10 - 100)
• YPI (tab)

CMS 520C+ with gauges E 1,5.2 and E 2.2

• Yarn Table
• New component type for CMS machines
• Introduction of series production of new machine types

Belt Take-Down

Exacter control of the take-down value (WB=)

• Value with a decimal place (step width 0.1 instead of 1):
• The value range was increased from 20 to 30.0.
• Pattern created by M1plus V6.3 can not be loaded to machines with OKC 5!

New Machines

• CMS 520C+ Mc-No. 254
• CMS ADF 32 BW Mc-No. 272
• CMS 530 MT
• CMS 502HP+

Setup2

• Setup2 - additional cycle counters
• Setup2 - Extension in the "YC/YCI" tab
• CMS ADF - Setup2, extension in the "YC/YCI" tab
• Pattern created by M1plus V6.3 can not be loaded to machines with OKC 5!

New Modules

• Starts
• Narrowing Modules
• Widening Modules
• New Modules
• M1plus Module Catalog
