How to Change the Size of the Fabric Pieces

    • The order requires a dimensioned shape in several sizes.
    • The size differences are created with the percentage according to the order.
    • The XS size presents an exception due to a fixed chest width specification of 39 cm.
    • The dimensioned shape is open.
    • The Show All Sizes ShapeSizeView status icon is activated in the dimensioning view.
      F1-Help_Philosophy_smallOptions of the Dimensioning View
    • The DimensionsShowMeasureTable tool window is open.

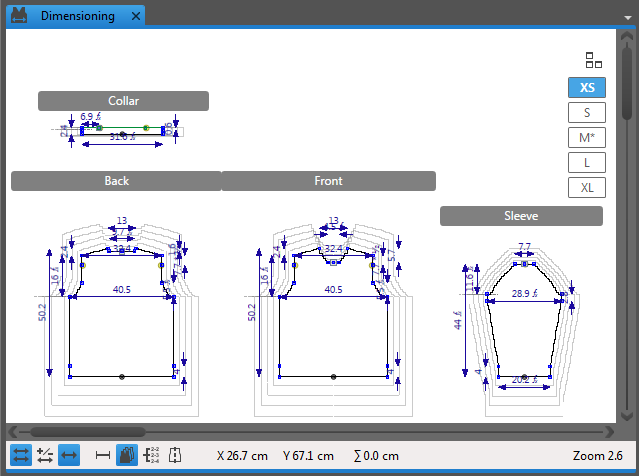

  1. Select the SizeSizeSelect_RibbonButton_XS menu of the ribbon.
    • This size appears with a bold border in the dimensioning view.
    • The dimensionings of this shape size appear.
      DimensioningView_AllSizes_XSbold
  2. Click on the Chest Width dimension in the XS column of the Dimensions table.
  3. Replace the specified value with the chest width value 39 cm of the order.
    • The position of the shape points of the XS size adjusts to the entered dimension.
      DimensioningView_AllSizes_XSdifferent

HowTo_Philosophy_Small How to Proceed:

Basics_Philosophy_SmallSets of Sizes
