How to Create Individual Sizes of a Stencil

Grading a size by percent:

    • The order requires the M size additionally to the XS size.
    • The size difference is specified by a percentage.
    • The M starting size is completed.
    • The DimensionsShowMeasureTable tool window is open.
  1. Open the context menu in the M column title of the Dimensions table.
    GradingShape_NewDimensioning_AddNewSize
  2. Select Add New Size Before
    • The Add New Size dialog box appears.
  3. Overwrite the indicated S size with XS in the DesignationTextBoxBlack edit box.
  4. Describe the size in the DescriptionTextBoxBlack edit box.
  5. Activate the CheckBoxOnGrading check box.
  6. Select the M* option in the Starting SizeList Box White list box.
  7. Keep the CreateSmallerSizeReduce button active.
  8. Select the RadioOnFactor option button in the Resizing group box.
  9. For the gradings enter the percentage via the TextBox+Spin_10% edit box.
  10. Confirm with Button OK.
    • An additional column for the XS size appears in the measure table with the ShapeSizeView display option activated.
      With the activated ShowCorrectionValueColumn icon the correction value columns appear additionally for the size XS.

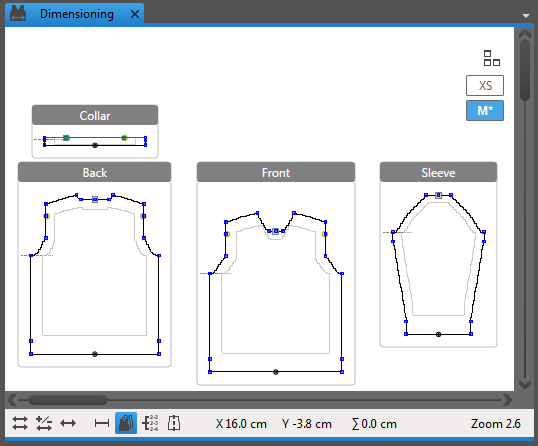

    • With the ShapeSizeView status icon activated both sizes appear in the dimensioning view.
      GradingShape_NewDimensioning_AddNewSize2

Grading the size absolutely:

    • The order requires the M size additionally to the XS size.
    • Grading steps areas specified by difference values per dimension.
      DifferenceSizeToSize16 within the measure table shows the column of the absolute values.
    • The M starting size is completed.
    • The DimensionsShowMeasureTable tool window is open.
  1. Enter a absolute difference for each dimensioning in the Dif column of the Dimension table.
  2. Open the context menu in the M column title of the Dimensions table.
    GradingShape_NewDimensioning_AddNewSize
  3. Select Add New Size Before
    • The Add New Size dialog box appears.
  4. Overwrite the indicated S size with XS in the DesignationTextBoxBlack edit box.
  5. Describe the size in the DescriptionTextBoxBlack edit box.
  6. Activate the CheckBoxOnGrading check box.
  7. Select the M* option in the Starting SizeList Box White list box.
  8. Keep the CreateSmallerSizeReduce button active.
  9. In the Resizing group box select the RadioOnAbsolutely (difference from the table) option button.
  10. Confirm with Button OK.
    • An additional column for the XS size appears in the measure table with the ShapeSizeView display option activated.
      With the activated ShowCorrectionValueColumn icon the correction value columns appear additionally for the size XS.
    • With the ShapeSizeView status icon activated also the XS size appears in the dimensioning view.
      GradingShape_NewDimensioning_AddNewSize2
After grading check and correct each size according to the order.
