What was new in 6.10?
M1plus V6.10 is compatible with machine operating system EKC 1.4
Sintral
- Y-RALL(n)
Exclude yarn carriers from releasing the clamps by Y-RALL. - Prevents the winding of too early released threads by the fabric take-down.
in the Yarn Field Allocation dialog box
Yarn carrier allocation (Yarn field allocation)- as PRINT instruction in the Float and Lock modules
Technique / Knitting-in all yarn carriers before the start (1 piece)
- MSECK
Reduced speed over up to 99 rows
Entry in the Setup table Carriage Speed
New Needle Actions

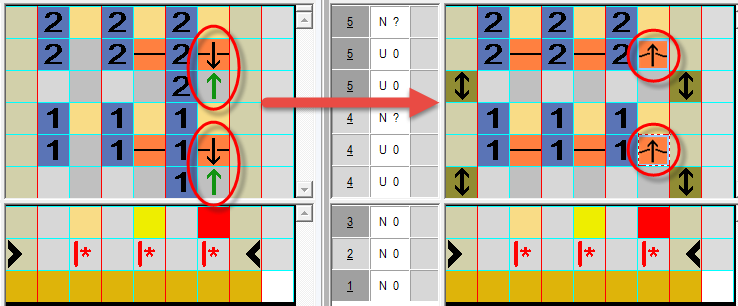

These needle actions enable a preparing transfer at the narrowing edge.
With it, the weft yarn will be completely enclosed by transfer even at the fabric selvedge.
Weft yarn / Transferring to the Rear with Preparing- In the Symbol View
Weft yarn / Transferring to the Front with Preparing- In the Symbol View
- Old and new in a CA
- Needle actions – Stitch length (further actions)
drawing tool with fix angle
Adjust Selection with size specification by percent
drawing tool with entry and display of the target size by %.- Adjust selection
- Dart Shape Element from GKS
Dart - Dart Shape Element in the M1plus
- Entry in the list box of the Shape Editor
Section Elements - Display in the Symbol View
Direction of Transferring Inward the Dart

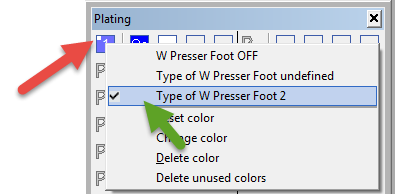

Activating presser feet in the Plating Color - Supplement to Version 6.9
- Context menu of the identification color
Define weft yarn presser foot for plating colors with weft yarn:
- Only W machines!
- 37
- Click on the identification color of the plating color.
- 38
- Call up in the context menu.
- The presser foot is displayed in the identification color and in the tooltip.
- Specify the available types of presser feet in the MC Attributes or Machine Properties. Presser Foot tab
