What was new in 6.5?

Windows XP

• M1plus V6.4 / V6.5 can not be installed toWindows XP
• Windows Vista or higher required
• Installation will be canceled
• Hardware-Requirements
• M1plus V6.4 / V6.5 is compatible with machine operating system OKC 6.2

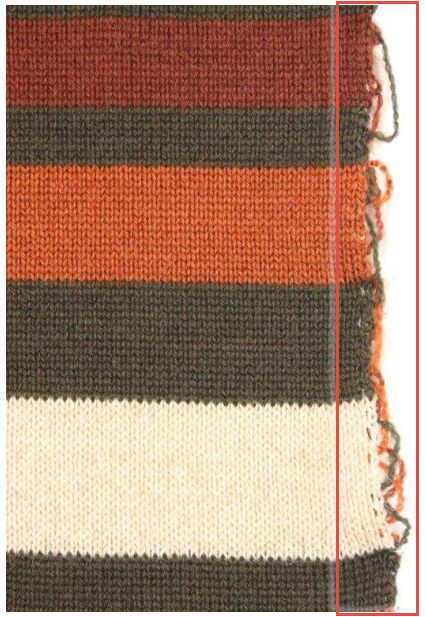

Filler Yarns at Lateral Fabric Selvedges

• Fastening Filler Yarns at Lateral Fabric Selvedges

• Example Pattern in Stoll Patternshop
  http://patternshop.stoll.com/shop/pattern/3621/1610021

Divided stitch cam

• New system function Divided stitch cam

  System functions tab
  Divided stitch cam

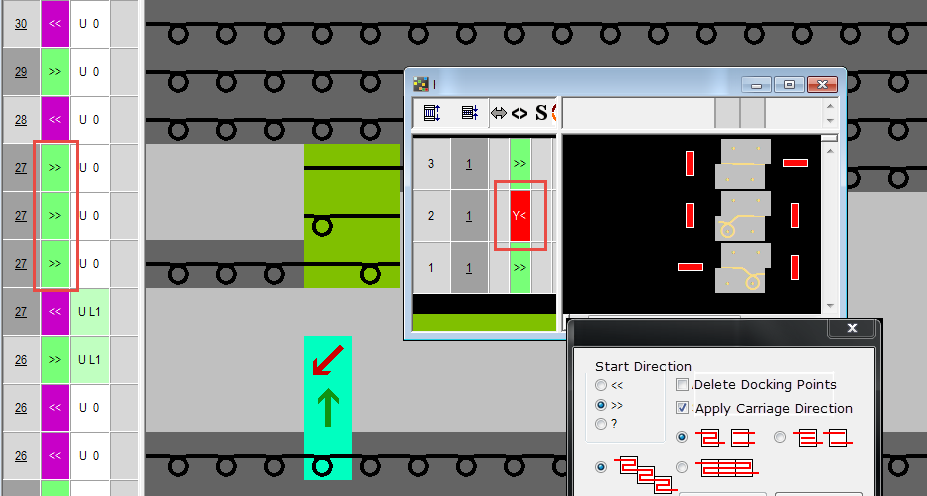

  Holding-deep by tuck function
• New System Function
  Stitch via split curve (control column System Function)
• Stitch via split curve in front only
• Stitch via split curve at rear only
• Stitch via split curve in front and rear
  Cam specification S:$AY-T; will be created here if stitches are inserted within this row on front and rear needle bed.
  Cam specification S:#XS%n-%m; for technical splitting will be created here if stitches are inserted on facing needles together with divided stitch cams .

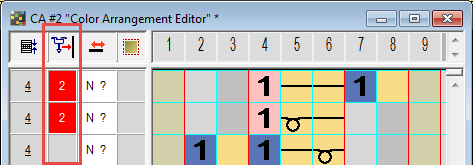

Jacquard and Intarsia

• Jacquard in connection with intarsia
• Improvements for Working with CA

Handling

• Sorting module groups by AltGr key pressed.
  (or CTRL + Alt)

  Module groups
• 1000 plating colors, handy and easily accessible
  Plating (toolbar)
• Improved and unambiguous handling of Global Pattern Parameters
• Write protected display of the Stoll specifications
• Creating your own pattern parameters easily and unambiguously
• Using the own pattern parameters for new patterns automatically
• Applying updates to new M1plus versions automatically
  Previous version has still to be installed for the update.
• Global Pattern Parameters...
• W0 with S0Y
  The take-down value (W0) will be set to zero with S0Y active.
  Sintral tab
• Remote Desktop
  You can remote access a M1plus workstation having just one smart card at the Remote-Client.
  STOLL M1plus Smartcard up to 2021
• Removal tool for M1plus installations: TabulaRasa.exe
  Removing non deinstallable M1plus installations.
• You will find the application here: <Installation directory>\Util\TabulaRasa.exe
• The tool browses all drives for \Stoll\M1plus directories and lists them up. Select the corresponding version.
• All registry entries concerning this version will deleted.
• Tabula rasa selects all versions and all under \Stoll\M1plus will be deleted.

Attribute Setup data directly to pattern

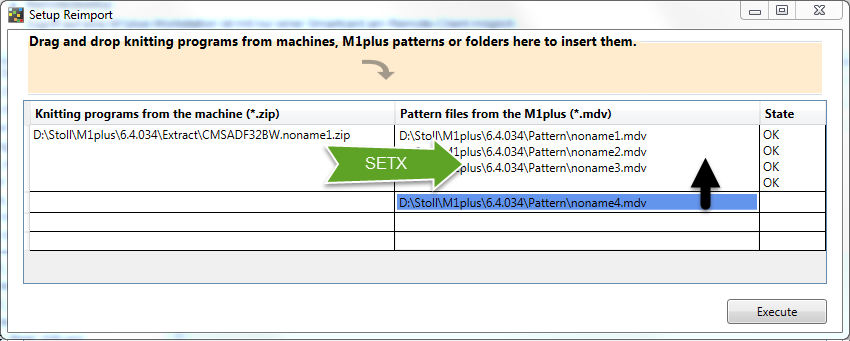

• Setup Reimport
  Attribute Setup data directly to one or several M1plus patterns
• Make empirical data, gained when setting-up a pattern on the machine, available to all the future usages within the right context.
• No need to open the mdv file
• Apply setx data of one knitting program contained in the zip pattern file to several mdv files by one step
• / All Programs / Stoll M1plus (xxx) / Setup Reimport


RS17 at Fabric End

• Comb / Cast-off ON/OFF with RS17
• Default within the New Pattern dialog box
  Cast-off ON/OFF (RS17) = not active
• With it Clamping at fabric end in the cast-off function (RS17 = 0) is not active in Configuration and the Sintral command RS17=1 IF #100=1 RS17=0 will not be inserted at the end of the pattern.
• RS17=0 + RS17=1 - Optimized handling

New Modules for Feeding

Technique
	Intarsia knitting-in
		Feeding
			Default
				Tuck cast off {8} - - v - - - ^ -
				Tuck cast off {12} - - v - - - ^ -
				Tuck cast off {16} - - v - - - ^ -
				Tuck cast off {20} - - v - - - ^ -
				Tuck cast off {24} - - v - - - ^ -
				Tuck cast off {28} - - v - - - ^ -

• Copy k4D55434B-0000-0000-0001-4B41524C4900 to clipboard and navigate by Ctrl + F7 to the Tuck cast-off {28}- - v - - - ^ - module in the Module Database.
• Module description in the Module Support under:
  Module Support : Technique : Intarsia knit-in : Feed-in : Truck front and rear, Castoff
